CX-02A Full Automatic Multiple 5 Wire Cable Crimping Twisting Tinning Machine
Features
1. Fully automatic single-end soldering and tinning machine can be used for multiple purposes. It can realize the functions of wire cutting, single-end soldering, double-end stripping, single-end half-stripping, single-end twisting, and single-end soldering. It is also called the end dipping machine or the single-head dipping machine, and it can also be called the "5-wire tinning machine"
2. The production wire range of the end dipping machine is wide, from AWG18 to AWG32, and can process 5 wires at the same time, which greatly improves the production efficiency and is very practical;
3. Fully automatic single-head end dipping machine with computerized knife adjustment, no gaskets, pneumatic components (SMC)
4. The tin furnace part of the soldering machine is designed with an automatic tin scraping device, so that there is no oxidized tin scraps on the surface of the tin dipping machine while ensuring the cleanliness of the table. 5. The wire clamping position and the dipping end point of the automatic single-head soldering tin machine can be adjusted to about 10mm to control the soldering end of the wire to be not easy to bend, and the dipping position is more accurate;
Technical Parameter
| Voltage | 50/60Hz 220V single phase |
| Cutting Length | 10mm-600mm(can do minimum 8mm) |
| Applicable cable | AWG#24-AWG#18,AWG#24-AWG#32 |
| Capacity | 6,000pcs-12,000pcs/hr |
| Stripping Length | 0-7mm(＞7mm can be customized) |
| Twisting length | 3-7mm |
| Tinning length | 0.5-7mm |
| Cutting accuracy | ±(0.2%*L+1)mm |
| Air Pressure | 0.5-0.7Mpa(5-7kg/m³) |
| Dimension | 1,210*770*1,370mm |
| Weight | about 450kg |
Product Tags:
|
|

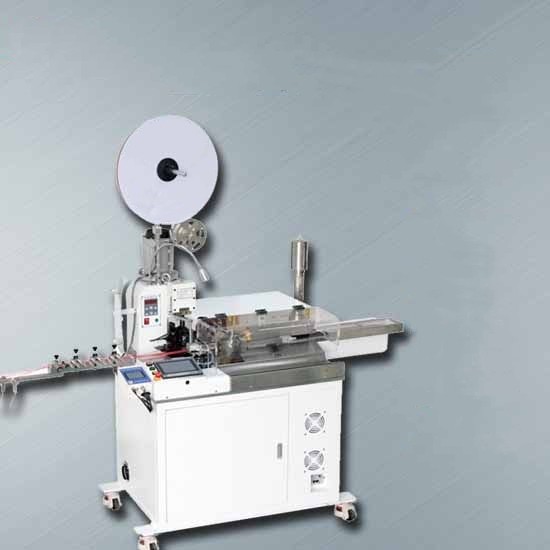

Multiple 5 Wire Cable Crimping Twisting Tinning Machine Images
|
